Beyond expectations !
S series was created with SIEMENS SI DG EA in 2020 as solution for Next Generation Panel Program.

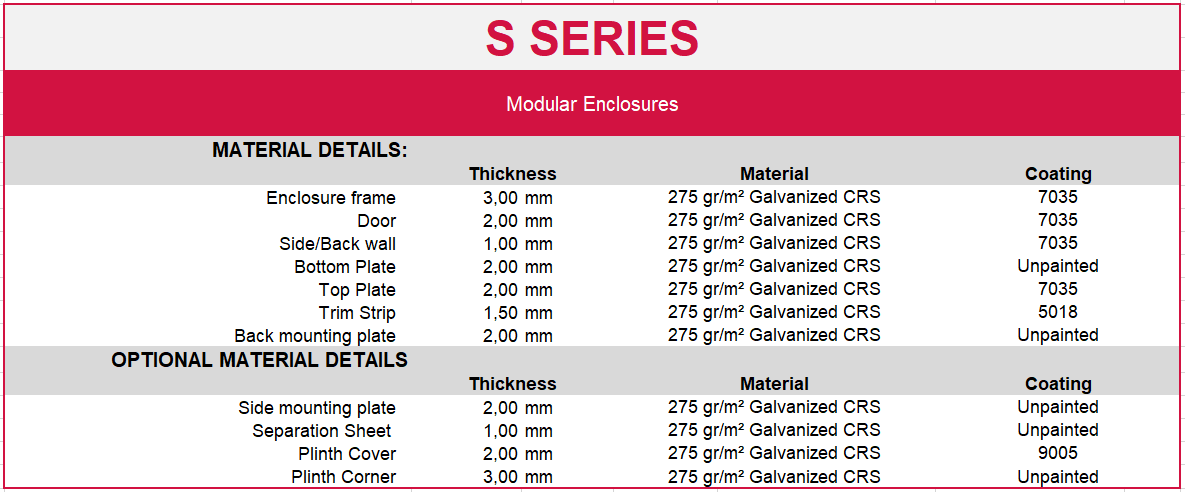

S Series is a reliable choice for extreme conditions with its 3 mm welded main frame structure and applicable for any specification.
Protection class according to IEC 60 529: IP55
IK CODE: IK10
SURFACE TREATMENT: Nanoceramic coating
COATING: Ral 7035 wrinkle UV resistive polyester powder coating
LOCK: Polyamide handle with key, 3 points latch
HINGES: Corner hinges, zinc, powder coated 240° opening angle (130°/180° with stopper)
INSETS: Door earthing cable (1 piece for each door)
GTIP CODE: 8538.10.00.00.00
IEC 60068 Seismic Zone 4 & ASTM 4169 Transportation Test
CE Declaration of Conformity
