Beyond expectations !
S serises was created with SIEMENS SI DG EA in 2020 as solution for Next Generation Panel Program.

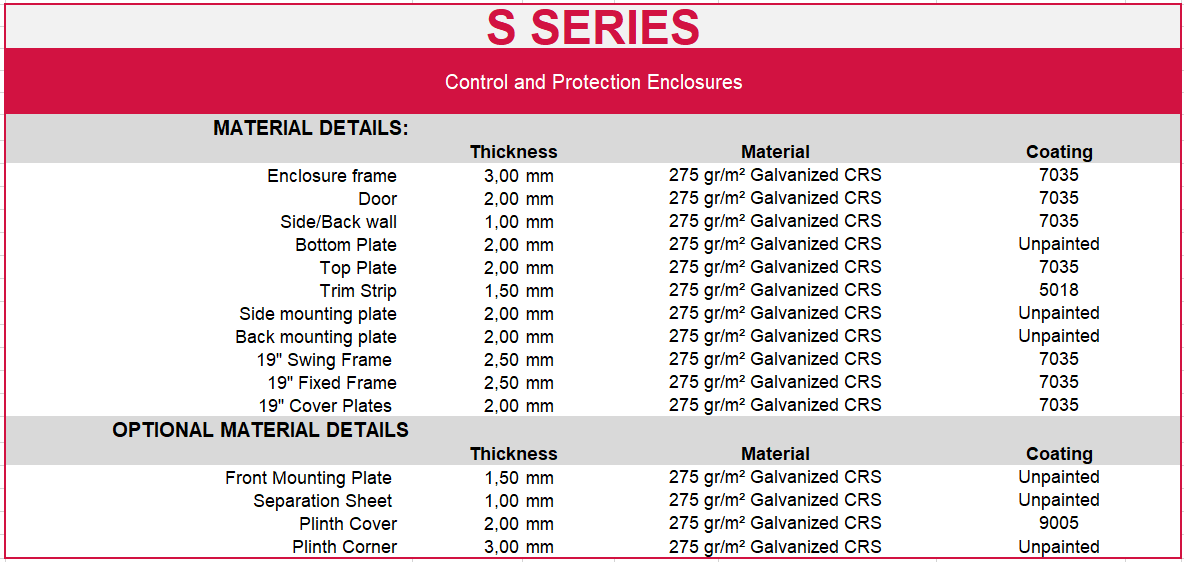

S Series is a reliable choice for extreme conditions with its 3 mm welded main frame structure and applicable for any specification.
Some advantages of S series;
* Largest usage area in the market
* Flexible, adjustable swing and fixed frame positions with 25mm steps.
* Swing Frame load tested up to 120 kg.
* Adjustable opening angles of door and swing frame from 130 to 180 degrees.
* Improved swing frame design allows mounting of 19’’ devices with up to 465 mm depth
* Yespan’s frame designs offers the max entry clearance with swing frame application
Protection class according to IEC 60 529: IP55
IK CODE: IK10
SURFACE TREATMENT: Nanoceramic coating
COATING: Ral 7035 wrinkle UV resistive polyester powder coating
LOCK: Polyamide handle with key, 3 points latch
HINGES: Corner hinges, zinc, powder coated
240° opening angle (130°/180° with stopper)
INSETS: Door earthing cable (1 piece for each door)
Trim Strip
Door Stopper
GTIP CODE: 8538.10.00.00.00
CERTIFICATES:
IEC 62208
IP55 Test
IK10 Test
IEC 60068 Seismic Test & ASTM 4169 Transportation Test
EAC Certificate
RED Certificate
DECLARATIONS:
CE Declaration of Conformity
