B SERIES
Power Distribution – Outdoor
Outdoor power distribution solutions up to 250 A
* B series is designed for wall mounted power distribution applications.
* Allows to use main circuit breaker up to 250 A.
* Available in stock from 48 poles to 120 poles.

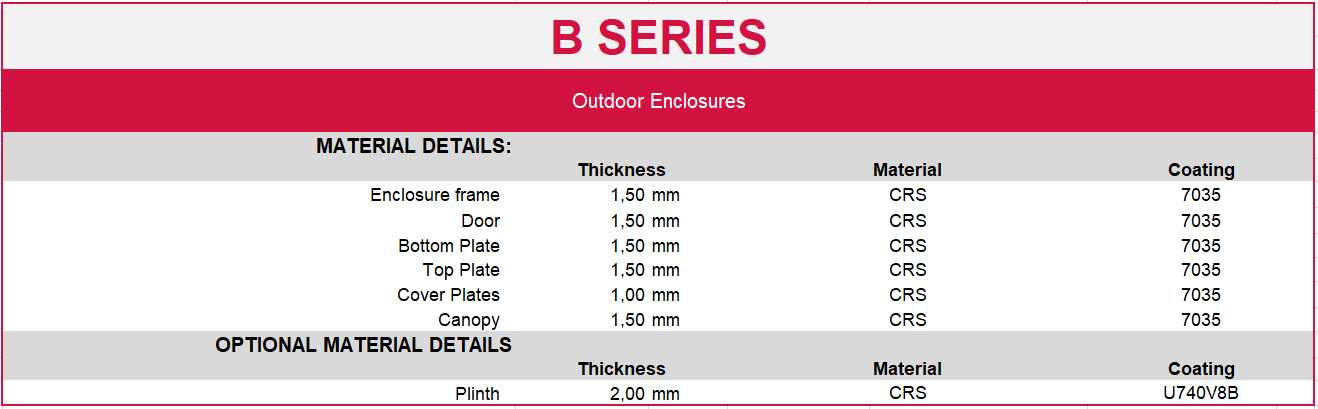

* Provides fast installation and assembly with its welded 1.5mm monoblock structure.
Protection class according to IEC 60 529: IP66
IK CODE: IK10
SURFACE TREATMENT: Nanoceramic coating
COATING: Ral 7035 wrinkle UV resistive polyester powder coating
LOCK: Quarter Turn Lock with DB key
HINGES: Hidden hinges, stainless steel
130° opening angle
INSETS: Door earthing cable (1 piece for each door)
GTIP CODE: 8538.10.00.00.00
CERTIFICATES:
IEC 62208-TSE
IP66 Test
IK10 Test
EAC Certificate
RED Certificate
DECLARATIONS:
CE Declaration of Conformity
